Data sheets, Technical norms, Manuals, and more …
The Standard Resistor Colour Code Chart
| Colour | Digit | Multiplier | Tolerance | Temperature Coefficient |
|---|---|---|---|---|
| Black | 0 | 100 = 1 | ||
| Brown | 1 | 101 = 10 | ± 1% | 100ppm |
| Red | 2 | 102 = 100 | ± 2% | 50ppm |
| Orange | 3 | 103 = 1,000 | 15ppm | |
| Yellow | 4 | 104 = 10,000 | 25ppm | |
| Green | 5 | 105 = 100,000 | ± 5% | |
| Blue | 6 | 106 = 1,000,000 | ± 0.25% | |
| Violet | 7 | 107 = 10,000,000 | ± 0.1% | |
| Grey | 8 | ± 0.05% | ||
| White | 9 | |||
| Gold | 10-1 = 0.1 | ± 5% | ||
| Silver | 10-2 = 0.01 | ± 10% | ||
| None | ± 20% |
Image taken of: https://www.electronics-tutorials.ws/resistor/res_2.html
Example Calculation
For a resistor with the color bands: Red, Red, Brown, Gold:
- Red (2), Red (2), Brown (×101), Gold (±5%)
- Resistance = 22 × 10 = 220 ohms with a tolerance of ±5%.
How to Find Out the Power
Image taken of: https://www.aulafacil.com/cursos/electronica/resistencias-en-electronica/como-medir-resistencias-l34216
Light Spread
| Unit Measure | Height to Spread (H:S) |
|---|---|
| foot | 1:2.85 |
| cm | 1:0.34 |
The light spread is a conical, so the spread measure is the diameter of cone. (See the picture above.)
32 GB0 capacity = ?
32 GB capacity = 12,000 8MP photos1 or
32 GB capacity = 176 minutes HD video recording/HD Movies2
0 1 Megabyte (MB) = 1,000,000 bytes; 1 Gigabyte (GB) = 1,000,000,000 bytes.
1 The number of photos and video files will vary according to host device resolution and compression.
2 Video recording minutes estimated at minimum HD resolution (720p; 30 fps).

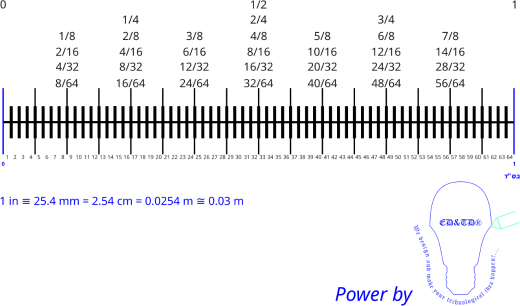

Understanding Inches and the Conversion Calculator
The concept of an inch is to divide a unit into equal parts.
An inch can be divided into 64, 32, 16, 8, or 4 parts.
Dividing an inch into 64 parts is practical for applications requiring a high level of precision.
Above 64 parts like 128 or 256 parts is not practical for everyday measuring tasks.
Symbol: in or ″
It is equal to 1/36 yard or 1/12 of a foot.
The inch is a unit of length used in both the British Imperial System and the United States Customary System of measurement.
It is derived from the Roman "uncia," which means "twelfth."
Thermal Relay Testing
| Test Point | Method | Procedure | Default value |
Out of service |
|---|---|---|---|---|
| 98 - 97 / NO | Continuity |
|
Continuity | Opened |
| 95 - 96 / NC | Continuity |
|
Opened | Continuity |
Explanation and Examples
Contactor Testing
| Test Point | Method | Procedure | Default value |
Out of service |
|---|---|---|---|---|
| 1 - 2 / L1 - T1 | Continuity |
|
Continuity | Opened |
| 3 - 4 / L2 - T2 | Continuity |
|
Continuity | Opened |
| 5 - 6 / L3 - T3 | Continuity |
|
Continuity | Opened |
| 13 - 14 / NO - NO | Continuity |
|
Continuity | Opened |
| A1 - A2 | Resistance |
|
[200,570] Ω | 0 Ω ≡ Open coil >570 Ω ≡ Shorted coil |
Explanation and Examples
Guide for Offset
| Offset Depth | 10° | 22-1/2° | 30° | 45° | 60° | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Distance Between Bends | Shrink Amount ✍ | Distance Between Bends | Shrink Amount ✍ | Distance Between Bends | Shrink Amount ✍ | Distance Between Bends | Shrink Amount ✍ | Distance Between Bends | Shrink Amount ✍ | |
| 3/8" | 2-1/4" | 1/16" | ¯ | ¯ | ¯ | ¯ | ¯ | ¯ | ¯ | ¯ |
| 2" | ¯ | ¯ | 5-1/4" | 3/8" | ¯ | ¯ | ¯ | ¯ | ¯ | ¯ |
| 3" | ¯ | ¯ | 7-3/4" | 9/16" | 6" | 3/4" | ¯ | ¯ | ¯ | ¯ |
| 4" | ¯ | ¯ | 10-1/2" | 3/4" | 8" | 1" | ¯ | ¯ | ¯ | ¯ |
| 5" | ¯ | ¯ | 13" | 15/16" | 10" | 1-1/4" | 7" | 1-7/8" | ¯ | ¯ |
| 6" | ¯ | ¯ | 15-1/2" | 1-1/8" | 12" | 1-1/2" | 8-1/2" | 2-1/4" | 7-1/4" | 3" |
| 7" | ¯ | ¯ | 18-1/4" | 1-5/16" | 14" | 1-3/4" | 9-3/4" | 2-5/8" | 8-1/2" | 3-1/2" |
| 8" | ¯ | ¯ | 20-3/4" | 1-1/2" | 16" | 2" | 11-1/4" | 3" | 9-5/8" | 4" |
| 9" | ¯ | ¯ | 23-1/2" | 1-3/4" | 18" | 2-1/4" | 12-1/2" | 3-3/8" | 10-3/4" | 4-1/2" |
| 10" | ¯ | ¯ | 26" | 1-7/8" | 20" | 2-1/2" | 14" | 3-3/4" | 12" | 5" |
Bending Conduit
| Angle | Multiplier | Shrink ✍ |
|---|---|---|
| 10° | 6.0 | 1/16" |
| 22-1/2° | 2.5 | 3/16" |
| 30° | 2.0 | 1/4" |
| 45° | 1.4 | 3/8" |
| 60° | 1.2 | 1/2" |
Concepts
Distance Between Bends = Offset Depth x Multiplier
Shrink Use this concept when you need a fourth or third bend point.
Explanation and Examples
Hole Size vs. Saw Size vs. Drill Bit Size
| ɸ Hole | ɸ Saw | ɸ Drill Bit |
|---|---|---|
| 1/8" | - | 7/16" |
| 3/16" | - | 9/16" |
| 1/4" | - | 3/4" |
| 1/2" | 7/8" or 22 mm | - |
| 3/4" | 1" or 25 mm | - |
| 1" | 1-3/8" or mm | - |
Default Login Credentials
| Brand | Device | Net ID | Some Host ⚠ | Login | Password | Port # | Port Type |
|---|---|---|---|---|---|---|---|
| Amcrest | Camera | 192.168.1.0/24 | 108, 138, 139, 177, 155 | admin | admin | 37777 | TCP |
| TP-Link | RF – Radios | 192.168.0.0/24 | 254 | admin | admin |
